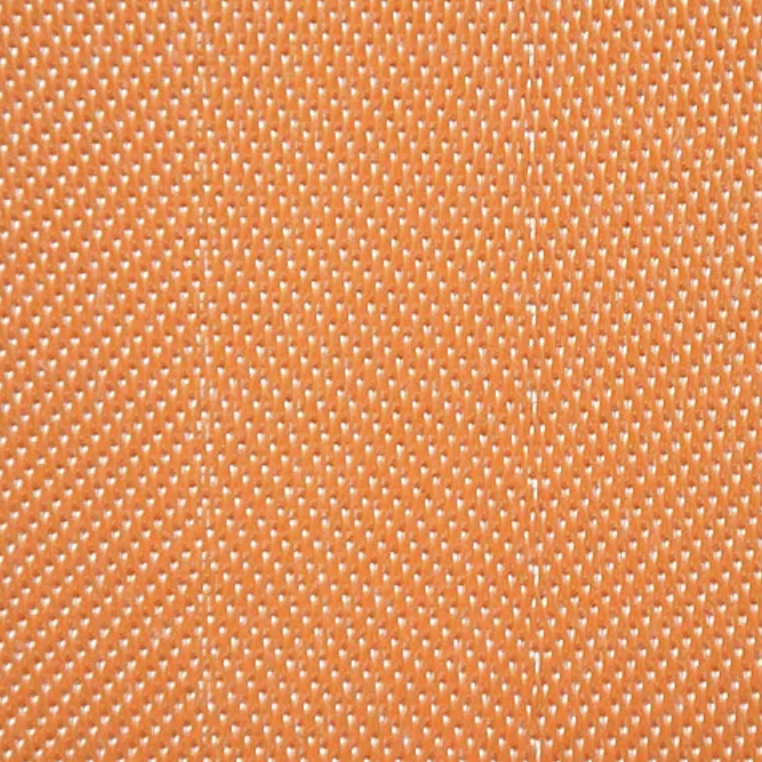

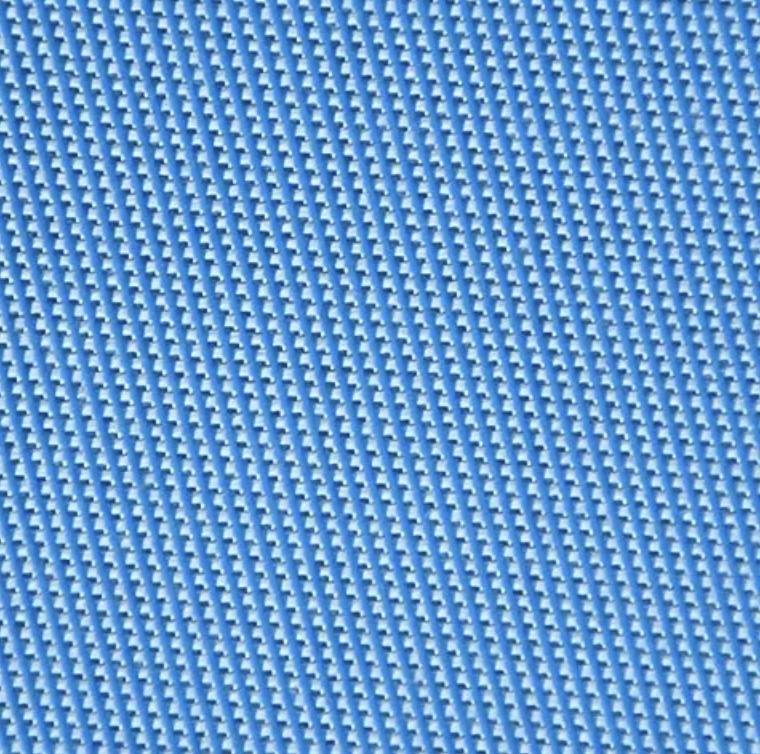

Featuring stable operation, wrinkle resistance, high filtration precision and easy filter cake release, vacuum filter belts are mainly matched with rubber belt vacuum filters, horizontal belt vacuum filters, rotary drum vacuum filters and vertical filter presses.
| Belt Model | Wire Diameter (mm) | Density (ends/cm) | Strength (N/cm)
Belt Surface |
Air Permeability (m³/m²·h) | ||
|---|---|---|---|---|---|---|
| Warp | Weft | Warp | Weft | |||
| C28508F | 0.50 | 0.50 | 30 | 20 | ≥1450 | 2158±500 |
| C28508M | 0.50 | 0.50 | 28 | 21 | ≥1390 | 710±500 |
